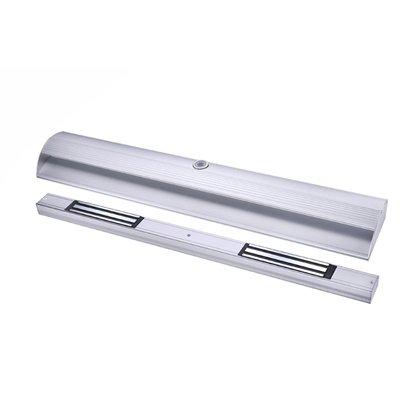

GEM PH-750 Indoor Electromagnetic Lock with Handle
Technical Specification
- Make: GEM
- Model code: PH-750
- Series: Indoor PH Series with Handle
- Lock Type: Electromagnetic Locks
- Monitoring Status: Unmonitored
Stylish hidden magnet design─safe and secure Aluminum anodized casing (US28) Dual voltage 12 or 24VDC field selectable No residual magnetism For inswing doors
Read more| Make | GEM |
|---|---|
| Manufacturer | Gianni Industries, Inc. |
| Category | Access Control>Electronic locking devices |
| Model code | PH-750 |
| Series | Indoor PH Series with Handle |
| Lock Type | Electromagnetic Locks |
| Monitoring Status | Unmonitored |
| Holding Force kN | 600 x 2 lbs |
| Magnet Type | Double magnets |
| Electrical Specifications | Voltage: 12 / 24 V DC |
Product description
The GEM PH-750 electromagnetic lock offers exceptional security and modern design for indoor inswing doors. This innovative locking solution features a stylish, concealed magnet integrated into a door handle, providing both functionality and aesthetic appeal. Perfectly suited for metal doors and frames, the PH-750 installs vertically on the door frame with ease, courtesy of its included fasteners and simple setup that requires no specialised tools.
Key Features
- Concealed magnet design for enhanced safety and style
- Durable aluminium anodised casing in US28 finish
- Dual voltage operation at 12VDC or 24VDC
- No residual magnetism ensures secure closure
- Built-in sensors: bond sensor and door status sensor
- Field adjustable relock time delay from 1 to 80 seconds
- Bi-colour LED indicator for lock status (green for unlocked, red for locked)
- Integrated exit button for convenient door release
Ideal Use Cases
The PH-750 is designed to provide optimised security and usability for environments with metal inswing doors. Its robust and flexible design makes it ideal for commercial buildings, office spaces, and industrial facilities that demand reliable access control solutions.
