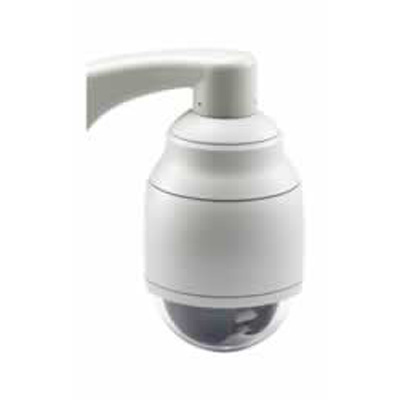

Focused on you – the new EverFocus EPTZ speed dome series

Product Profile

The day/night speed dome cameras EPTZ 3600 (36x optical zoom + 12x digital zoom) and EPTZ 2700 (27x optical zoom + 10x digital zoom) are available as IP66 outdoor or indoor model and offer high resolution technology up to 570 TV lines (b/w mode - EPTZ 3600). Further features include various day/night switching options (manual, automatic or through external contact via an alarm input), automatic exposure control, wide dynamic range and an integrated digital slow shutter (DSS).

Additionally, the 36x models EPTZ 3600 (outdoor) and EPTZ 3600 I (indoor) offer 8 freely adjustable privacy zones. The 4 alarm inputs can individually be linked to a pre-defined position (192 programmable) or even to a tour (16 programmable) or pattern (4 programmable). Alarm reactions are forwarded through 2 alarm outputs. Intelligent auto resume functions for inactivity and power-up round off the excellent functionality.

Several mounting adaptors for wall, corner, pole or ceiling installation are optionally provided. The range of accessories is completed by the IP66 connector box EPTZ PBOX with dual power input, a universal mounting adaptor for additional equipment as well as an optional 110/230 VAC to 12 VDC converter and an optional mounting adaptor for pole or corner mount.

For the control of the new EPTZ series' domes, the multi-function keyboard EKB 500 is available featuring two independent RS-485 communication ports with selectable baud rate, OSD access to the connected devices and 3D joystick control of PTZ functions.

Read more

Technical Specification

Make Everfocus
Manufacturer EverFocus Electronics AG
Model code EPTZ 3600 I
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 530
Sensitivity lux 0.05
Pan Speed o/ sec 0.1 ~ 120
Tilt Speed o/ sec 0.1 ~ 60
Digital (DSP) Yes
Indoor/Outdoor Indoor
Mount Type Wall
Electrical Specifications Voltage: 24 V AC
Power Consumption: 14 W
Presets 128
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB > 50
Synchronisation Internal
Signal Mode PAL
Video Output 1.0 Vp-p, 75 Ohms
Physical Specifications Dimensions mm: 160 x 220
Environmental Specifications Operating Temp oC: -40 ~ +40
Operating Humidity %: 0 ~ 90
Protection: IP66
