Technical Specification

Features:

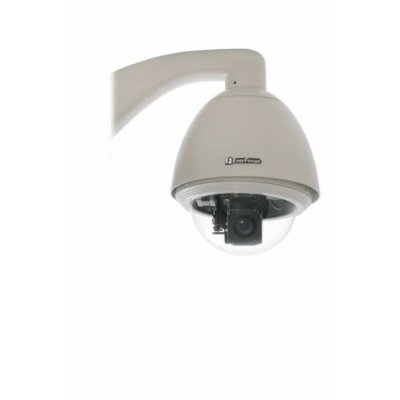

  • Make: Everfocus
  • Model code: EPTZ 1000
  • Series: WISENET X SERIES
  • Chip Inch Size: 1/4
  • Colour Type: Colour
Read more
Make Everfocus
Manufacturer EverFocus Electronics AG
Model code EPTZ 1000
Series WISENET X SERIES
Chip Inch Size 1/4
Colour Type Colour
Resolution TVL 470
Sensitivity lux 0.7
Pan Speed o/ sec 120
Tilt Speed o/ sec 60
Electrical Specifications Voltage: 24 V AC
Power Consumption: 18 W
Focal length 4.1
Rotation Angleso 90 tilt, 360 pan
Presets 192
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/1 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB > 50
Synchronisation Internal
Video Output 1 Vp-p
Physical Specifications Dimensions mm: 310 x 220
Weight g: 3,200
Environmental Specifications Operating Temp oC: -40 ~ +40
Operating Humidity %: 0 ~ 90
Protection: IP66
