Technical Specification

Features:

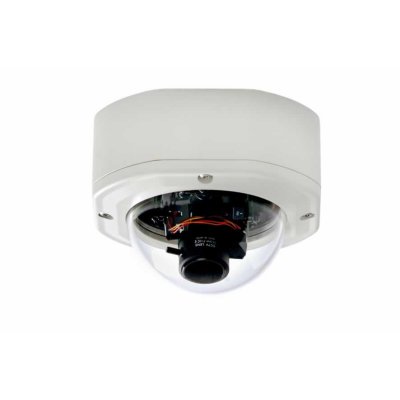

  • Make: Everfocus
  • Model code: EHD 150
  • Chip Inch Size: 1/3
  • Colour Type: Monochrome
  • Resolution TVL: 560
Read more
Make Everfocus
Manufacturer EverFocus Electronics AG
Model code EHD 150
Chip Inch Size 1/3
Colour Type Monochrome
Resolution TVL 560
Sensitivity lux 0.06
Dome Type Variable Focus
Indoor/Outdoor Indoor/Outdoor
Mount Type Ceiling
Electrical Specifications Voltage: 12 V DC
Power Consumption: 15 W
Focal length 3.5 ~ 8.0
Back Light Compensation Yes
Auto Gain Control Yes
Electronic Shutter range 1/50 ~ 1/100,000
Synchronisation Internal / Line Lock
Physical Specifications Dimensions mm: 130 x 130 x 99
Weight g: 1700
Environmental Specifications Operating Temp oC: -46 ~ +50
Protection: IP66
