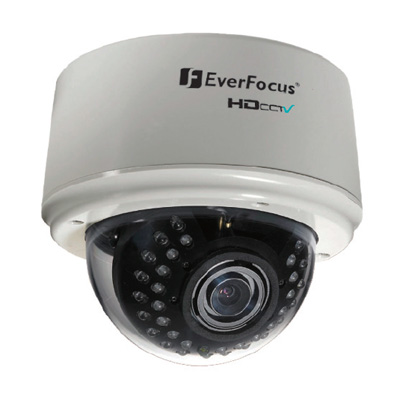

Everfocus EDH5240 2 megapixel indoor IR HD dome camera

Please note: this is a discontinued product.

Go to Replacement product

Features:

Additional info:

EDH5240 dome camera has true day/night operation with automatic ICR module.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Everfocus
Manufacturer	EverFocus Electronics AG
Category	CCTV>Dome cameras
Model code	EDH5240
Chip Inch Size	1/3 inch
Colour Type	True Day / Night
Resolution TVL	1920 x 1080
HD	Yes
Sensitivity lux	0.0 lux
Dome Type	Variable Focus
Indoor/Outdoor	Indoor
Mount Type	Surface mount
Electrical Specifications	Voltage: 12 V DC, 24 V AC Power Consumption: 11.3 W
Focal length	3.3 ~ 12
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/60(1/50) ~ 1/8000
S/ N (Signal/ Noise) Ratio dB	45
Signal Mode	NTSC, PAL
Built-in IR LED	Yes
Video Output	1 Vpp
Physical Specifications	Dimensions mm: 140 x 130 Weight g: 658
Environmental Specifications	Operating Temp ^oC: 0 ~ 40 Operating Humidity %: 20 ~ 80 Protection: Vandal Resistant
Additional info	EDH5240 dome camera has true day/night operation with automatic ICR module.
Download PDF version Download PDF version
