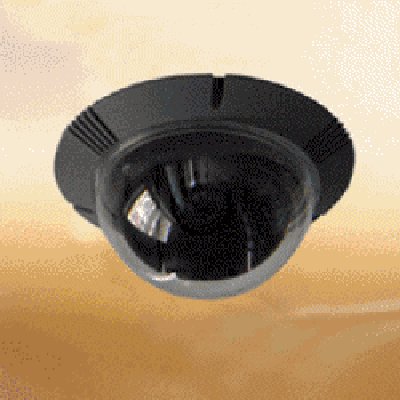

Orion colour-mono dome camera from Ernitec…

Product Profile

  • Automatic colour/black and white change
  • Variable speed 1~375°/sec. (pan)
  • Privacy masking (only 23x version)
  • 23x optical zoom, 10x electronic zoom (colour-mono version)
  • 22x optical zoom, 8x electronic zoom (colour version)
  • Auto-turn around function performs 180 pan immediately while tracking an object under the dome
  • Learning tour
  • 360 continuous pan rotation
  • Backlight compensation
  • Minimum illumination 0.01 lux (23x version)
  • Built-in 4 alarm inputs
  • 128 presets
  • Auto Focus
  • Home position
  • Pan/tilt speed proportional to zoom ratio
  • Electronic shutter
  • Remote control via RS-485
  • OSD for camera set-up
  • 24VAC model
  • Outdoor versions
  • Advanced DSP camera
  • Auto white balance
  • Auto iris control
Read more

Technical Specification

Make Ernitec
Manufacturer Ernitec A/S
Model code Orion 661-23P
Series WISENET X SERIES
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 470
Sensitivity lux 0.01
Dome Type Continuous Rotation
Pan Speed o/ sec 375
Digital (DSP) Yes
Tilt Speed o/ sec 375
Indoor/Outdoor Outdoor
Mount Type Pendant
Focal length 3.6 - 82.8
Rotation Angleso P 360 T 180
Presets 128
Zoom Ratio x22
Additional info Clear halfsphere, 23 x zoom lens woth sunshield. Includes removable IR cut filter and works in very low lux environment.
Download PDF version
