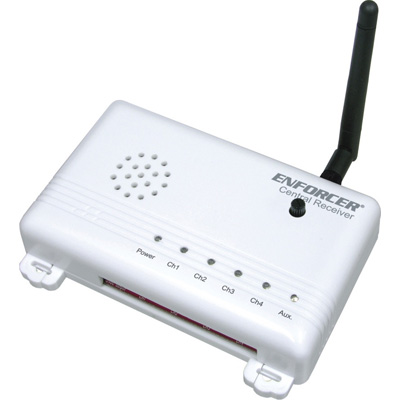

Superior Electronics SK-910RC4Q central receiver

Technical Specification

Features:

Make: Enforcer
Model code: SK-910RC4Q
No of Channels: 4 channels
Accessories: Central Receiver
Power Supply: 500mA @ 12VDC

Additional info:

The ENFORCER SK-910RC4Q Central Receiver controls home automation functions, garage doors, alarm panels, etc., from up to 500ft (150m). Its unique combination of functions make it highly flexible and ideal for use in a variety of applications. The central receiver with the following features: Four relays, one per channel, each 10A@24VDC; Outputs are programmable for timed, toggle, latching, or validity modes; Compatible with all SECO-LARM 13MHz transmitters.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Enforcer
Manufacturer	Superior Electronics Corporation
Category	Intruder Alarms>Intruder alarm communicators
Model code	SK-910RC4Q
No of Channels	4 channels
Accessories	Central Receiver
Electrical Specifications	Power Supply: 500mA @ 12VDC
Environmental Specifications	Operating Temp ^oC: -40 ~ 75 C (-40 ~ 167 F)
Additional info	The ENFORCER SK-910RC4Q Central Receiver controls home automation functions, garage doors, alarm panels, etc., from up to 500ft (150m). Its unique combination of functions make it highly flexible and ideal for use in a variety of applications. The central receiver with the following features: Four relays, one per channel, each 10A@24VDC; Outputs are programmable for timed, toggle, latching, or validity modes; Compatible with all SECO-LARM 13MHz transmitters.
