Banks and financial institutions have more complex and diverse requirements for video surveillance technology than most other organisations. From corporate buildings, to branch offices, data centres, ATMs and cash depots. Several European Banks benefit from using Mirasys Video Management Software (VMS), which provides high privacy protection and robust technology.

Networking the video management system of the bank’s branch offices provides users a single logical system that can be used from any site or from an external service provider's service centre. Hence, VMS services are produced in the most cost-effective way whether it be locally, centrally or outsourced.The unique, non-fragmenting storage file system provided by Mirasys protects against hard disk failure

The Mirasys VMS checks the system performance in real time and helps to prevent system failure. Enhanced multi-disk recording minimises data loss and maximises recording continuity. The unique, non-fragmenting storage file system protects against hard disk failure.

Benefits to financial sector

Perimeter and motion detection monitors sensitive and restricted areas, such us bank vaults or safety deposit boxes, and alerts personnel only if an important event occurs, saving time and operational costs. People counting and other data reporting enables reduction of business inefficiencies and enhances customer service.

Advanced alarm management tools enable the creation of specific alarm lists based on the motion, sound or text data triggers; reducing the number of false alarms. Dwell time and stopping detects people loitering at the ATM. Automatic Number Plate Recognition (ANPR) alerts on potential threats and suspicious vehicle movement and reports on car parking utilisation.Automatic Number Plate Recognition (ANPR) alerts on potential threats and suspicious vehicle movement and reports on car parking utilisation

Recorded video watermarking guarantees the integrity and authenticity of recorded and exported video data for court evidence. User authentication and setting specific user rights ensures control of system access and protects sensitive data.

Also, product features such as audit trail and versatile material management and search functionality support, e.g., the new EU General Data Protection Regulation (GDPR) requirements. The purpose of the audit trail events is both to show what the user has done, and also to track other (programmatic) changes that change the user interface.

Key to data security is operational policies for:

  • account security (e.g., personal user accounts, instead of shared accounts, rename default administration accounts, etc.);
  • password security (don't leave systems with default passwords, don't permit too short passwords, use passphrases instead, etc.), and;
  • software and device firmware updating.

Mirasys recommends that systems are kept up to date with the latest software versions. In a networked, multi-server or multi-site environment, all Mirasys VMS servers and client applications can be centrally upgraded from the Mirasys management server.

It is also recommended to protect wide area network links with VPN (Virtual Private Networking), or other secured, connections

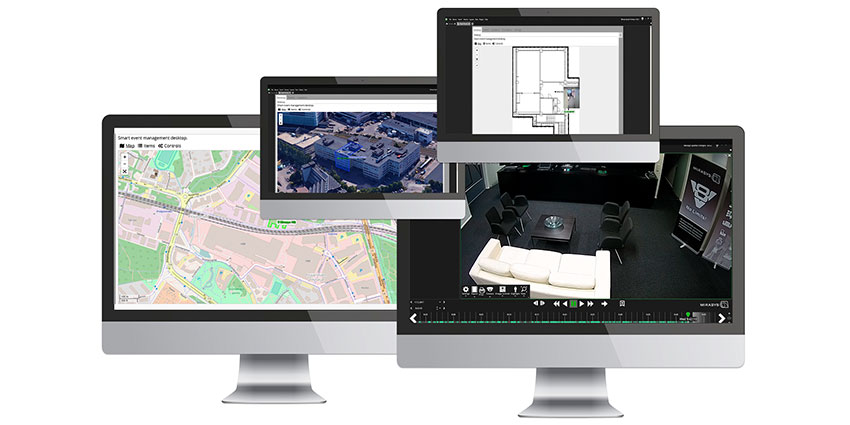

Manage easily various event sources in multiple locations with the flexible Mirasys Smart Event Management platform

How to protect your surveillance online

For deployments, Mirasys recommends that surveillance cameras are installed, when possible, in a private camera network, where the direct camera communications take place only inside the camera network to VMS servers, and is separate from the client access (“viewing”) network (and from the public Internet, in particular).

This also prevents the camera streaming and signalling from being forwarded inadvertently to any external systems not part of the VMS solution. In addition, camera access from outside the private network is thus not possible. It is also recommended to protect wide area network links with VPN (Virtual Private Networking), or other secured, connections.Integrated systems such as access control, intruder detection and fire alarm systems serve as sensors for the video management system

For server-to-server and client-to-server signalling, the data communication is in Mirasys VMS both compressed and encrypted by default for sensitive data (such as usernames and passwords and other details).

Integration and Internet of Things in VMS

With larger video management solutions, the integration of different systems is valuable because it allows automated functionalities that eliminate human errors and delays. Integrated systems such as access control, intruder detection and fire alarm systems serve as sensors for the video management system.

IoT (Internet of Things) is increasingly applied in the video management. The sensors continuously provide information and, if necessary, based on this information, the predefined decision chains automatically open a video connection to the event place without any delay or error. The resulting snapshot may be one image or a set of several images that supports decision making in a problem situation.

All the information is also stored for later processing. The event picture is routed either automatically or manually for people and organisations needing the information. Also, related Standard Operating Procedures can be automatically opened.Mirasys VMS is the answer to the scalability and performance needs of new camera technologies from any manufacturer

Mirasys VMS is quick and easy to install, and especially effective in networked, IP-based CCTV systems and their operational and management needs, such as centralised management and upgrading/updating of servers, drivers and client applications without requiring on-site travel to remote locations. User profiles are easy to create and change. Servers can be pre-installed and pre-configured before delivering to the deployment location.

Easy-to-use user interface

The Mirasys VMS user interface can be adapted to individual and specific needs and preferences and provides more visual space for videos without sacrificing any functionality. A HTML5 (Hypertext Markup Language, Version 5) based user interface in Version 8.4 offers easy access to the Mirasys system from anywhere; PCs, tablets or smartphones.

Video surveillance camera features are consistently improving. Image quality can be exceptionally good compared to what it used to be only a few years ago. The newest cameras also require much less network bandwidth due to more effective encoding formats, such as H.265/HEVC (from 40% up to 60% of bandwidth and storage space savings, depending on the footage and device without any loss of quality, or increased quality at the same level with the H.264/AVC encoding) that many IP camera manufacturers have started to support.

Individual servers can handle more simultaneously connected cameras than before, and the entire system has no actual upper limit. Mirasys VMS is the answer to the scalability and performance needs of new camera technologies from any manufacturer, and the Mirasys based video management system can be designed freely using the best equipment for the customer-specific requirements and can support also all future needs.
