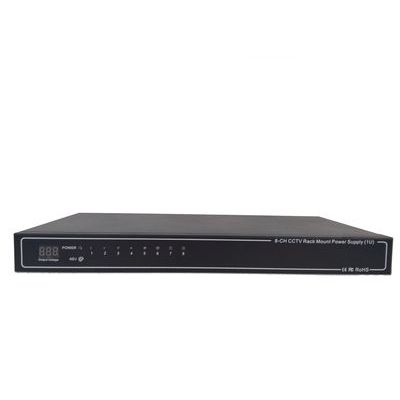

LTV Europe LTV-8N12082AD-K 8 way RackMount power supply

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

LTV Europe LTV-8N12082AD-K 8 way RackMount power supply

Features:

Make: LTV Europe
Model code: LTV-8N12082AD-K
Input Voltage: 96 ~ 264 V AC
Output Voltage: 10.5 ~ 13.8 V DC
No of Outputs: 8

Additional info:

8 Way RackMount Power Supply 12V DC Universal input: 96-264 V AC Max: 200W Output controllable: 10,5-13,8V DC Protection against overload, overload power and short circuit Operating Temperature: -20°C ~ +70°C Dimensions: 439.7×210.1x44mm Weight: 3.4 kg Delivery contains: Rackmount brackets and power cord

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	LTV Europe
Manufacturer	LTV Europe Sicherheitstechnik GmbH
Category	CCTV>Power supplies & batteries
Model code	LTV-8N12082AD-K
Input Voltage	96 ~ 264 V AC
Output Voltage	10.5 ~ 13.8 V DC
No of Outputs	8
Power Consumption	200W
Environmental Specifications	Operating Temperature C: -20 ~ +70 C (-4 ~ +158 F) Operating Humidity %: 20 ~ 90
Physical Specifications	Dimension mm: 440 x 210 x 44 Weight g: 3400
Additional info	8 Way RackMount Power Supply 12V DC Universal input: 96-264 V AC Max: 200W Output controllable: 10,5-13,8V DC Protection against overload, overload power and short circuit Operating Temperature: -20°C ~ +70°C Dimensions: 439.7×210.1x44mm Weight: 3.4 kg Delivery contains: Rackmount brackets and power cord
