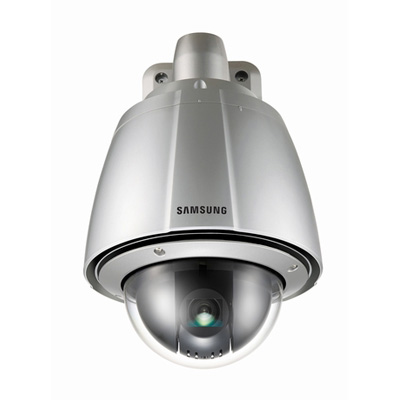

Hanwha Techwin America Techwin SNP-3301H network PTZ dome camera with 550 TVL

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SNP-3301H
  • Chip Inch Size: 1/4
  • Colour Type: Colour / Monochrome
Read more
Additional info:

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SNP-3301H
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 680
Sensitivity lux 0.002
Dome Type Continuous Rotation
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Voltage: 24 V AC
Power Consumption: 22 W
Focal length 3.5 ~ 105
Rotation Angleso 360 pan, -5 ~ +185 tilt
Presets 255
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/120,000
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal, Line-lock
Signal Mode PAL/NTSC
Zoom Ratio x30
Network Properties Interface: RS-485/422
Network Protocols: TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, DHCP
Physical Specifications Dimensions mm: 248 (Dia) x 331
Weight g: 4,600
Environmental Specifications Operating Temp oC: -50 ~ +50
Operating Humidity %: 20 ~ 80
Protection: IP66
