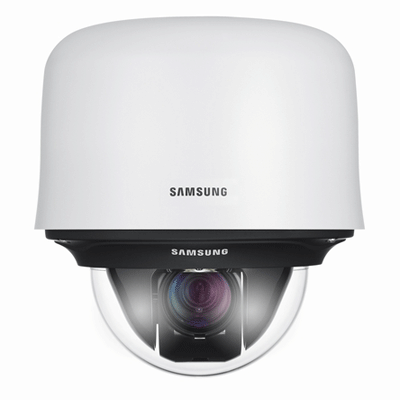

Hanwha Techwin America SCP-2430H dome camera with digital zoom

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SCP-2430H
  • Chip Inch Size: 1/4
  • Colour Type: Colour / Monochrome
Read more
Additional info:

The SCP-2430H PTZ dome camera is able to capture quality images over expansive areas thanks to the inclusion of a 43x optical zoom. Embedded with Hanwha Techwin's A1 chipset, this camera offers clear and vivid images with 600TV lines color resolution and is able to perform perfectly at low light levels down to 0.7Lux/0.2Lux.

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SCP-2430H
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 600
Sensitivity lux 0.02 @ F1.65
Dome Type Continuous Rotation
Pan Speed o/ sec 600
Tilt Speed o/ sec 600
Electrical Specifications Voltage: 24 V AC
Power Consumption: 16 W
Focal length 3.2 ~ 138.5
Rotation Angleso 360 pan, -6 ~ +186 tilt
Presets 512
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/100 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB 52
Synchronisation Internal / Line-lock
Signal Mode PAL / NTSC
Video Output 1 Vp-p, 75 Ohms
Zoom Ratio 43x (Optical), 16x (Digital)
Network Properties Interface: RS-485/422, Coaxial control
Control: PTZ
Physical Specifications Dimensions mm: 228 x 256
Weight g: 3,000
Environmental Specifications Operating Temp oC: -50 ~ +50
Operating Humidity %: 0 ~ 90
Protection: IP66
Additional info The SCP-2430H PTZ dome camera is able to capture quality images over expansive areas thanks to the inclusion of a 43x optical zoom. Embedded with Hanwha Techwin's A1 chipset, this camera offers clear and vivid images with 600TV lines color resolution and is able to perform perfectly at low light levels down to 0.7Lux/0.2Lux.
Download PDF version
