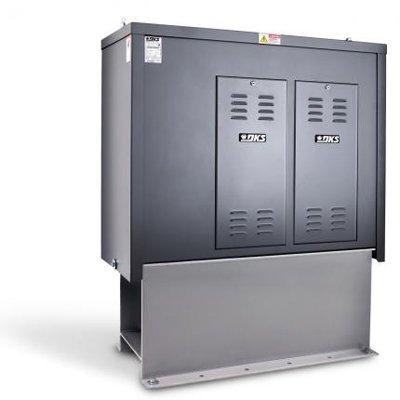

Doorking 9550 maximum security slide gate operator

Technical Specification

Features:

Make: Doorking
Model code: 9550
Type of Gate: Slide Gate
Accessories: Slide Gate Operator

Additional info:

DKS 9500 series of Vehicular Slide Gate Operators are designed for use on very large and very heavy gates in maximum security applications only. These operators must never be used in applications serving the general public. These heavy duty operators use a high tensile steel alloy roller chain as the pulling medium, which is immune to slippage and the challenges of uneven terrain – and also simplifies installation. User can set the speed of the gate up to 4 ft/sec. (1.2 m/sec.), with an electronic braking option. Features: Speed control module. Slow start / slow stop. Direct driven limit nuts. Anti-tailgating feature. Adjustable partial open.. Gate tracker reporting output. Built-in diagnostics. Ports for plug-in loop detectors. Selectable stop / reverse loop functions. Two 115 VAC convenience outlets. Fail-secure operation includes crank for manual operation. Programming switches. Built-in 3-button control (open-close-stop) Built-in power On/Off switch.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Doorking
Manufacturer	DoorKing, Inc.
Category	Access Control>Gates
Model code	9550
Type of Gate	Slide Gate
Accessories	Slide Gate Operator
Additional info	DKS 9500 series of Vehicular Slide Gate Operators are designed for use on very large and very heavy gates in maximum security applications only. These operators must never be used in applications serving the general public. These heavy duty operators use a high tensile steel alloy roller chain as the pulling medium, which is immune to slippage and the challenges of uneven terrain – and also simplifies installation. User can set the speed of the gate up to 4 ft/sec. (1.2 m/sec.), with an electronic braking option. Features: Speed control module. Slow start / slow stop. Direct driven limit nuts. Anti-tailgating feature. Adjustable partial open.. Gate tracker reporting output. Built-in diagnostics. Ports for plug-in loop detectors. Selectable stop / reverse loop functions. Two 115 VAC convenience outlets. Fail-secure operation includes crank for manual operation. Programming switches. Built-in 3-button control (open-close-stop) Built-in power On/Off switch.
