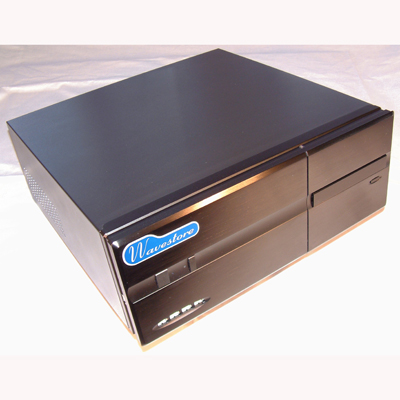

Wavestore CRYSTAL – Hybrid Video Recorder for analogue, IP recording & management
Wavestore CRYSTAL – Hybrid Video Recorder for analogue, IP recording & management

Wavestore Crystal is a hybrid video recorder with audio and motion detection, and a host of standard features for the recording and management of analogue, IP and megapixel cameras simultaneously.The Crystal is available with 250GB, 500GB or 750GB storage, which is expandable.  It is ideal for factories, process monitoring, service stations, small dealerships, retailers, restaurants, and applications requiring a professional and well-featured solution. Benefits:Total System Flexibility - intuitive routines for system set-up and operationSupport for IP and megapixel cameras from Arecont, Axis, Sony, Lumenera, JVC, IQEye, Mobotix and more.Real-time recording and playback on every input (up to 50ips PAL, 60ips NTSC)Super-fast FIND of images, even with many terabytes of storageLong operational life - hardware and software upgradeableSimultaneously record analogue and IP cameras into a single recorderSupports recording of large file sizes associated with large megapixel camerasUp to 16 analogue and 16 IP camera inputs on each recorderNetwork up to 256 recorders directly (thousands of cameras)True multi-server view and control; full IP compatibility with existing systemsAlarms by dry-contact, RS-232, or IP interfacePowerful SDK for third-party integration, or customisationLip-synch audio with every cameraMultiple languages supported on screenIntelligent configurable video motion detectionSelectable spot outputs for TV monitorsExtensive range of PTZ protocolsAreas of interest search of recorded imagesPrivacy masking; removable by authorised userWavestore - solutions for critical recording and management applications where high quality image recording and fast access to recorded data are important.

Add to Compare

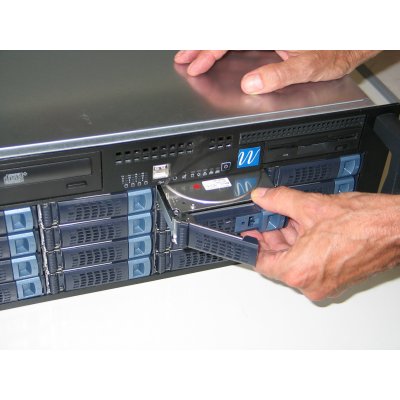

Wavestore HiNet delivers the unique ability to record analogue, multi-megapixel and IP cameras simultaneously
Wavestore HiNet delivers the unique ability to record analogue, multi-megapixel and IP cameras simultaneously

The new HiNet design offers increased flexibility to integrate legacy and new camera technologies into a single recorder that facilitates upgradeability, easier maintenance, and minimise start-up and upgrade costs.The product range supports a wide range of analogue, multi-megapixel and IP (network) cameras simultaneously including cameras from Axis, JVC, Sony, Panasonic, Arecont, Pixim, Mobotix and Lumenera. The HiNet capability is offered in various configurations to address different applications.GRANITE will support from 4 to 32 analogue inputs plus up to 32 megapixel or IP cameras simultaneously, with massive storage up to 8000GB.ROCK will support from 4 to 32 analogue inputs and up to 32 megapixel or IP cameras simultaneously, with storage up to 3000GB.CRYSTAL will support either 4 or 8 analogue inputs plus up to 8 megapixel or IP cameras simultaneously, with storage from 250GB up to 1000GB.A range of software license options permits any of these systems to be optimised for a specific application.  All of these options include remote client software that enables separate users to log in simultaneously.A powerful monitoring capability delivers the capability for the rapid development of custom solutions with no programming knowledge.  Remote site map monitoring, access control and alarm registration and notification is provided on a single platform. KEY FEATURES :-Delivers the ultimate in video recording and managementHigh Quality image recording with lip-sync’d audio is standard Fastest FIND IMAGE function in the industryRecord at 50 pps per camera simultaneouslyMultilingual user interface (currently 12 languages)Excellent AV management – DVD-R, CD-ROM, HDD, streamingWavestore - integrity in digital recording

Add to Compare

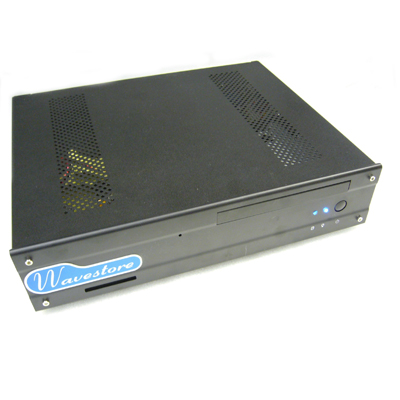

Wavestore OPAL – low-cost megapixel camera Network Video Recorder for IP recording & management
Wavestore OPAL – low-cost megapixel camera Network Video Recorder for IP recording & management

The new Opal is a small footprint, low cost, entry-level embedded network video recorder (NVR) with real-time recording capability.  The Opal is offered with 250GB or 500GB storage, which can be expanded.  It is ideal for factories, process monitoring, service stations, small dealerships, retailers, restaurants, and sites where space is limited and where IP cameras are desired. Benefits: Record and display combinations of many IP and megapixel cameras simultaneously. Handle IP cameras up to 11 megapixels. Zoom on record AND playback for amazing image clarity.  Easily configurable to record simultaneously from many cameras including Axis, Sony, Arecont, Mobotix, Lumenera, IQinvision. Up to real-time recording rates on all cameras. Embedded real-time recording and management system, easy to set up, simple to run. Operates over 100Base-T or Gigabit LAN/WAN networks.  Scalable to 256 units, with all the features of existing Wavestore units. Seamlessly networks to all other Wavestore recorders. Linux OS provides excellent reliability and reduces susceptibility to virus attacks. “Around-the-clock” recording confidence assured.  Fast power-out recovery allows restart less than 60 seconds after power returns.  Intuitive controls provide rapid search and playback of recorded video clips.   Remote view software provides secure Internet access from anywhere.   PC client software provides easy copying of images or video clips.  270mm x 325 x 80 enclosure to fit into limited space.   Extensive password controls for user definable resolution, frame rate and video quality for adapting to any application.

Add to Compare
