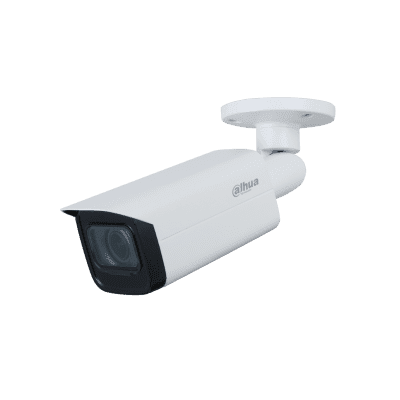

Dahua HAC-HFW2501TU-Z-A 5MP Starlight HDCVI IR Bullet Camera

Product Profile

Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Pro series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with 120 dB true WDR and a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Technical Specification

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>CCTV cameras
Model code	HAC-HFW2501TU-Z-A
Colour Type	Colour / Monochrome
Resolution TVL	5 MP
Sensitivity lux	0.001
Electrical Specifications	Voltage: 12 V DC Power Consumption: 10.7W
Focal Length mm	2.7 ~ 13.5
Mount Type	Pole
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	PAL: 1/3 s–1/100,000 s, NTSC: 1/4 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	> 65
Signal Mode	PAL, NTSC
Mini or Compact	Compact
Zoom	Yes
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Physical Specifications	Dimension mm: 244.1 x 90.4 x 90.4 Weight g: 760
Environmental Specifications	Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Protection: IP67 Operating Humidity %: < 95
Additional info	Max. 25 fps@5MP (16:9 video output) Starlight, 120 dB true WDR, 3D NR CVI/CVBS/AHD/TVI switchable Built-in mic 2.7 mm–13.5 mm motorized lens Max. IR length 80 m, Smart IR IP67, 12V DC±30%
